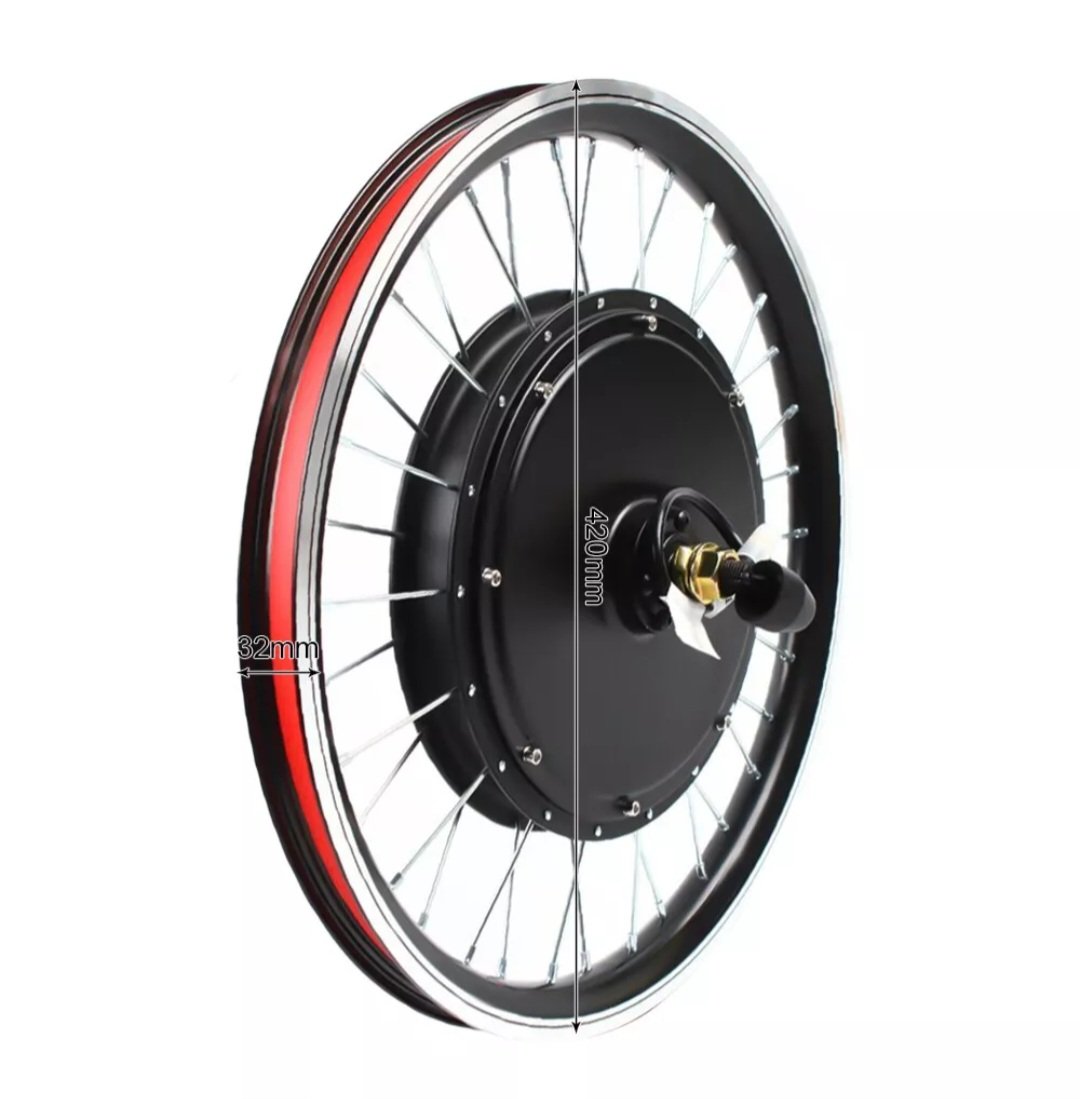

20 inch 48V 1000W Front Wheel Motor Electric Bicycle E-bike Conversion Kit LED

NOTE:This product does not have tires, the kit is suitable for installing 20-inch tires.

Note: while connecting the controller to the wires, please make sure that you connect the right colors to the controller. Otherwise, the controller may be broken.

About the battery: The power and voltage of the battery（not included） you buy should be consistent with our set. When installing, make sure that the wiring is not reversed.Otherwise, it may damage the product.

Note: Not waterproof, please do not drive on rainy days
Features:

1. 48V 1000W Brushless and toothless motor specification, strong and powerful.

2. Come with powerful controller guarantee big current supply.

3. Suitable for both V brake and Disc brake.

4. The maximum speed of the motor will be 50km/h.

5. The open size of the front fork is 100mm

6. Thumb Throttle

7. The size of the rim is 20"（Suitable for 20 inch bike）.

8. Crank speed sensor for pedal assist.

Specifications:

Condition: 100% Brand New

Optional Type: Front Motor

Motor Specification: 48V 1000W

Speed: 50KM/H

Front fork open size: Approx. 100mm / 3.9in

Brake: V brake/disc brake

Controller: 48V 30A

Assist: 5 magnetic point assist sensor

Brake Lever: Power cut-off brake lever

Throttle: Thumb Throttle

Display: SW-810LED Display

Wiring Mode: Waterproof wire for outgoing motor, common wiring for other

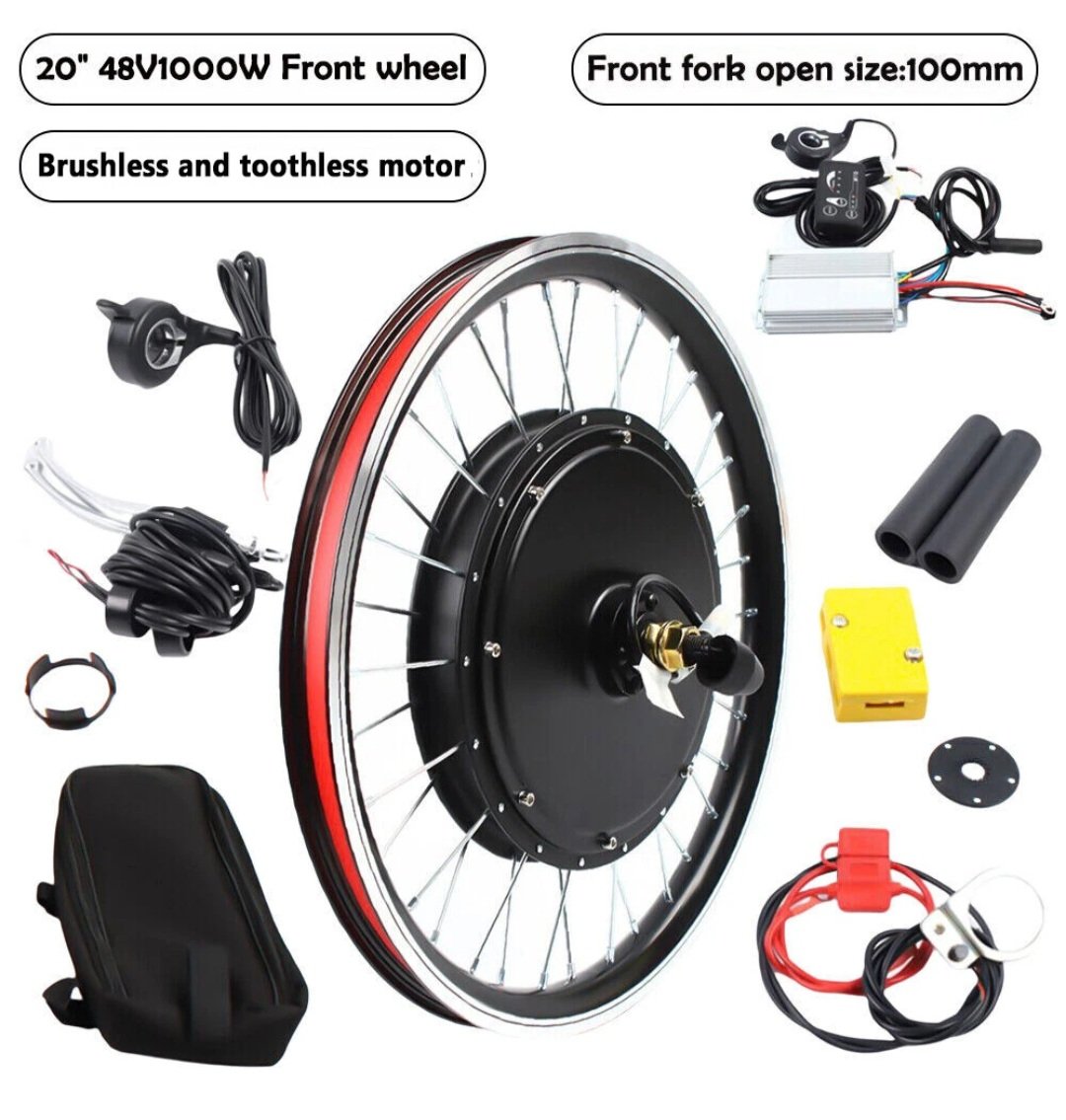

Package List:

1 * Motor

1 * Controller

1 * Assist

1 * Electronic power brake

1 * Thumb Throttle

1 * LED Display

1 * Waterproof Wire

1*Controller carrying case
